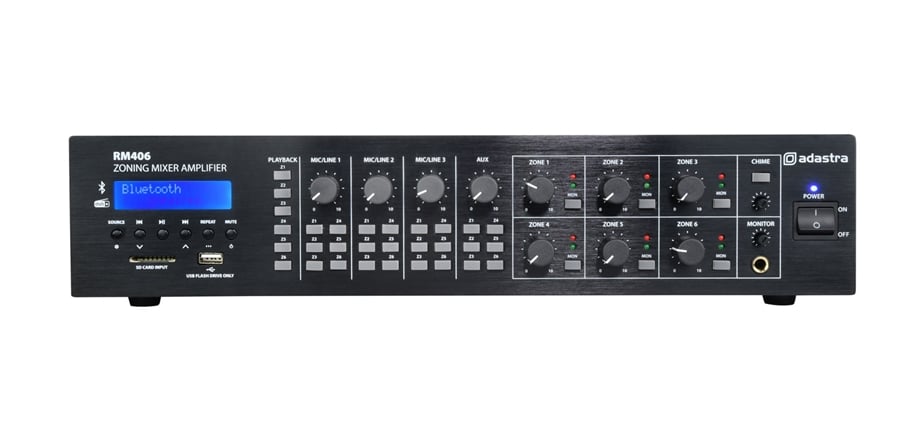

Adastra RM406 Mixer Amplifier

A 6-zone 100V (6 x 40W) Class-D mixer amplifier perfect for multi-zone PA installations.


The 6 Zone 100V Line Class D amplifier by Adastra is the perfect solution for commercial installations in a wide range of environments such as restaurants, offices, shops, factories and so on. The Amplifier has six 40W outputs which can be wired as 100v line or 8 Ohms


The RM406 has a built-in media player which accepts SD card or a USB Memory Stick (FAT16) and a built in FM Radio Tuner. You can also connect via Bluetooth if you are within 5 meters of the amplifier but if you prefer to hardwire an audio device you will find a range of inputs at the rear so you can connect a microphone or other audio devices such as iPod or google home, Alexa etc.


Each of the 6 zones can play the same music or a different source by simply flicking a switch on the front panel of the amplifier. Each zone can be monitored from the front panel via a headphone output with volume control. Three mic/line inputs, one aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. The RM406 is specially designed for multi-room systems requiring different audio sources.

Features
check_circle_outline
Integral USB/SD/FM audio player
check_circle_outline
100V or 4/8 Ohms operation
check_circle_outline
6 independent output zones
check_circle_outline
3 mic/line and 1 auxiliary input
check_circle_outline
Mic priority and chime functions
check_circle_outline
Switchable +20V phantom power
check_circle_outline
24V mute contacts
check_circle_outline
Monitor headphones output
Specifications
Adastra RM406 6-Zones Mixer / Amplifier Black
Miscellaneous
Potência de saída significa a taxa média de fornecimento de energia eléctrica durante um Intervalo de Medição, convertida numa taxa horária de fornecimento de energia eléctrica, em kWh por hora.
Power Output
6 x 40W RMS
Tipo específico de construção para este produto.
Construction
Class D + transformer outputs
Audio Source
USB / SD / FM / BT Audio Player
Indica o tipo e/ou quantidade de entradas do equipamento. As entradas podem ser de áudio (conexões variadas), MIDI, digitais, etc.
Input(s)
3 x Mic/Line (XLR/Jack), Auxiliary 2 x RCA
Zone Outputs
Speaker: 6 x Terminal outputs 100V / 8 Ohms / 4 Ohms / Com
Phantom Power
+20V Switchable to each XLR
Monitor Outputs
6.3mm stereo phones, 2 x RCA line
Mute
+24V Relay contacts
A distorção harmónica total, do inglês total harmonic distortion (THD), é uma medida da distorção harmónica presente num sinal e é definida como a razão entre a soma das potências de todos os componentes harmónicos e a potência da frequência fundamental.
Total Harmonic Distortion
< 0.76% @ 1kHz
Saber a impedância da entrada do pedal informa-nos se é possível ligar também sinais de linha ou apenas de instrumento.
Input Impedance
1k Ohms (Mic/Line)
Sensibilidade da entrada do equipamento em relação ao sinal enviado à mesma. Quanto mais baixo o valor (ex. -40dB) mais sensível é a entrada.
Input Sensitivity
-11dB (Line), -46dB (Mic)
SNR (Signal to Noise Ratio)
84dB (Line), 82dB (Mic)
Define qual a versão bluetooth integrada nos headphones. Dispositivos com a mesma versão, ou aproximada, irão conseguir melhores resultados de conexão s/ fios.
Bluetooth Version
5.0
O alcance e a resposta de frequências do equipamento (medido em Hz).
Frequency Response
100Hz - 24kHz
Type of power supply needed for the equipment to operate.
Power Supply
170-264 VAC, 50Hz (IEC)
Apresenta as dimensões totais do produto, habitualmente em centímetros milímetros ou polegadas.
Dimensions
433 x 89 x 302mm
Item weight. Usually given in Kg (or Pounds). Sometimes also other types of indications, such as for drum cymbals, for example.
Weight
11kg
